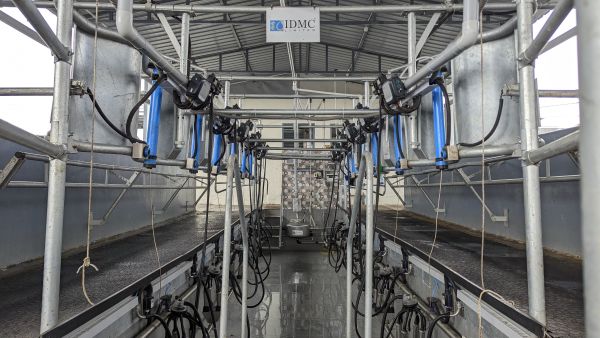

30° Herringbone Milking Parlour

IDMC offers a robust and reliable Herringbone Milking Parlour solutions tailored specifically for large dairy farms. Designed to support high throughput, animal comfort, and milker convenience, our parlours are built to deliver consistent performance in demanding farm conditions. As part of our complete milking solutions portfolio, IDMC’s parlours ensure smooth operation, long-term durability, and scalable configurations to meet evolving dairy needs.

The Herringbone Milking Parlour is the most widely used milking system across the world, trusted for its simplicity, efficiency, and ease of operation. In this system, cows stand side by side at a suitable angle typically 30 to 45 degrees facing away from a central operator pit. This angled positioning allows for easy access to the udder from the side, making the attachment and removal of the milking cluster more ergonomic and efficient. The central pit provides the operator with an ideal working height for maintaining udder hygiene and monitoring each animal during milking.

A robust, reliable milking parlour frame

• Suspended 2 1/2" x 5" beam frame. With suspended, angled rump rail assemblies with galvanized splash guard..
• Offers extremely high animal comfort.
• Ensures quiet and relaxed milking due to well-designed milking parlour according to the animal’s needs.
• Swinging entrance gate with optional vacuum control and conventional exit release with optional vacuum control.
• Offers flexible adjustment to your animal sizes.
• Hot Dip Galvanized frame structure Construction ensures high durability. All components are first welded and then galvanized.
• The design offers the cows a stress-free, speedy group change without problems due to large entrance gates and walkways optimal ergonomic working area for the operator.
• The design offers the milker good access to the animal with a good view of the udder.
• Allows individual technical milk place equipment with the possibility for expansion.
• Ensures safe milking due to safe cow positioning.

Vacuum Pump

Our YPM series Vacuum Pumps are especially designed for Heavy Duty Operations. Our reliable vacuum pumps from 500LPM to 3000LPM are suitable for a complete range of milking parlours. The Pump is complete with Vacuum tank, Electric motor, High performance durable drip oil lubrication system. It is robust, silent, and durable.

FC300 Milking Units

The FC 300 is engineered to deliver optimal performance for mid-sized to large sized dairy operations.

The FC 300 is sufficient for the demands of a farm milking 8 to 12 hours a day with high yielding cows averaging from 3000 to 12000 Liters per lactation.

This robust, trustworthy no-frills cluster has a genuine fast flow capacity and is simple to use and economical to operate.

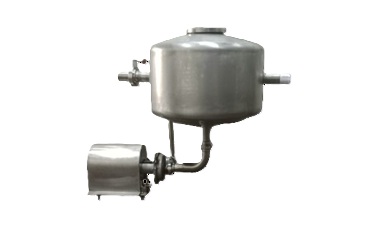

Milk Receiver

Stainless-steel (SS304) high-quality receiver HAVING 60 – 100 LTR capacity, complete with all accessories like milk level sensors, complete SS 304 IDMC make NRV, IDMC make .55kW milk pump and permanent milk filter (not requiring disposable milk).

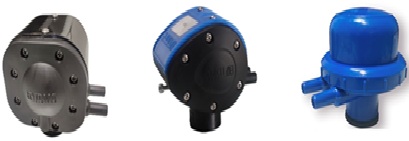

Pulsator

Choice of Hydraulic, pneumatic and simultaneous pulsator for different types of animals and different types of milking systems. Economic and easy to maintain.

Milk Recording

This milk meter is a milk yield measurement instrument. It will in addition to measuring the cow’s milk yield, one can easily take a sample for further analysis. It withstands common types of cleaning liquids (detergents, acids, caustics) in moderate concentrations and at a maximum temperature of 75°C. The milk meter is designed for in-line washing.

CIP Cleaning System

Cluster Cleaner

A low-cost yet efficient and robust alternative to a conventional CIP unit, Easy and simple to attach to the cluster for washing. It is foldable hence it will not obstruct or hurt the milkier during milking or cleaning. Safe and optimal cleaning/disinfection thanks to special spray head. Available in different sizes to fit a variety of liner sizes.

Automatic CIP System

The fully automatic CIP system has cutting-edge technological features that saves washing time. The system is designed to monitor medium and large installations and guarantees perfect cleaning and fully controlled disinfection of long piping. Compact system for cleaning and disinfecting milking installations. The logics are controlled electronically. All accessories are provided with the system for correct assembly. The chemical products are loaded manually compact system for cleaning the milking system.
