IDMC has a fully equipped machining centre to manufacture and supply a wide range of high precision valves and fittings. It also designs total piping systems for dairy, food, beverages, brewery, pharmaceuticals and other processing plants. IDMC’s valves comply with EHEDG and 3A standards.

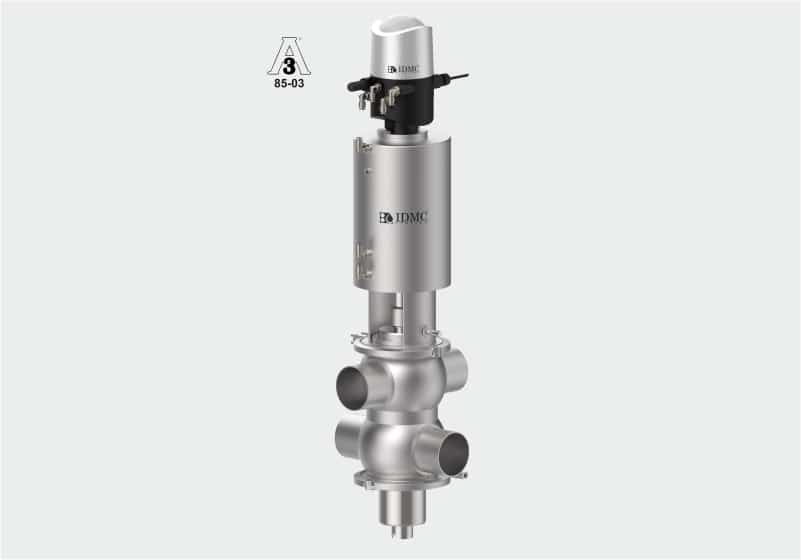

Pneumatic mix proof valves

IDMC manufactures high precision double seat and double seal pneumatic mix proof valves, with the product contact parts in SS 316L. The valves are made from the round bar on the high precision CNC machines. The valves comply with 3A and EHEDG standards.

These valves have a unique design with upper and lower seat balancers. The control cap has three solenoids. The feedback of both, the lower as well as the upper seat cleaning can be made available in the SCADA. The control caps could be ASI or hard wired.

Available sizes: Upto 101.6 mm

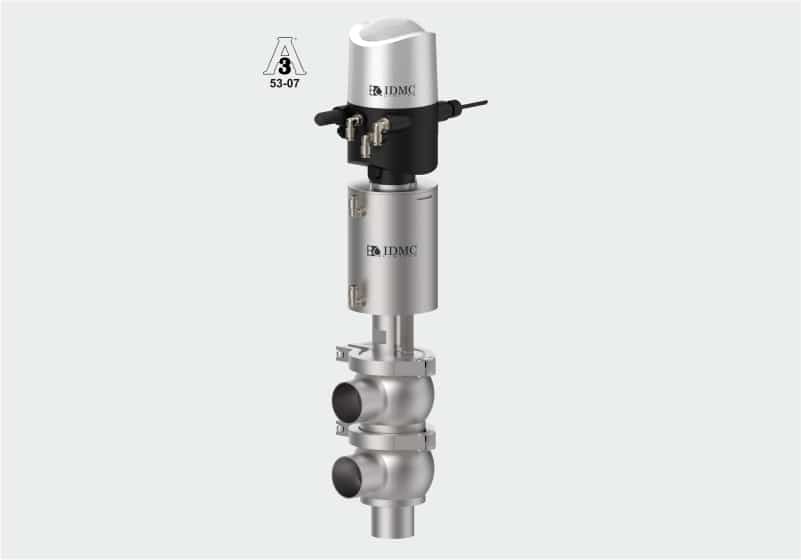

Pneumatic seat valves

IDMC manufactures pneumatic single seat valves. These are available in any required configuration – L, LL, T or LT etc., with the contact parts in SS 316L. The valves are made from round bar on the high precision CNC machines. The valves comply with 3A and EHEDG standards.

The control cap has two solenoids and the signal of Open/Close is available in the SCADA/ HMI through the PLC. The control caps could be ASI or Hard wired.

Available sizes: Upto 101.6 mm

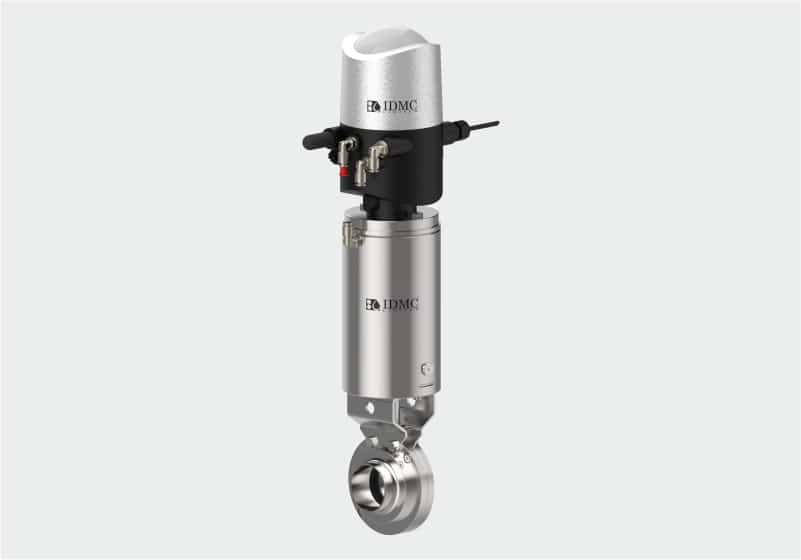

Pneumatic butterfly valves

IDMC manufactures pneumatic butterfly valves with the contact parts in SS 304 / SS 316L. The valves are made on high precision CNC machines. The valves comply with 3A and EHEDG standards. These are available with or without control heads.

Available sizes: Upto 101.6 mm

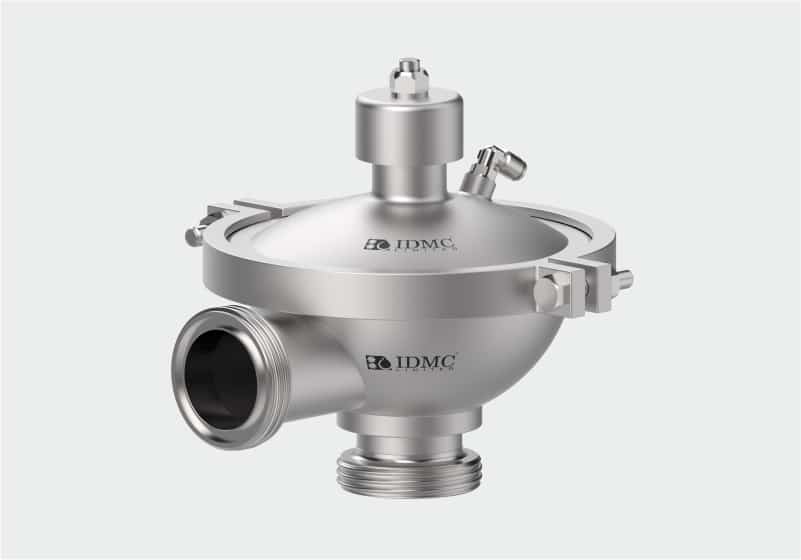

Constant pressure modulating valves

Constant pressure modulating (CPM) valves are required to maintain a uniform back pressure in any pasteurizer or any other system, as per the food safety norms. IDMC manufactures high precision, fully automatic CPM valves of different sizes.

Available sizes: 38.1 mm76.2 mm

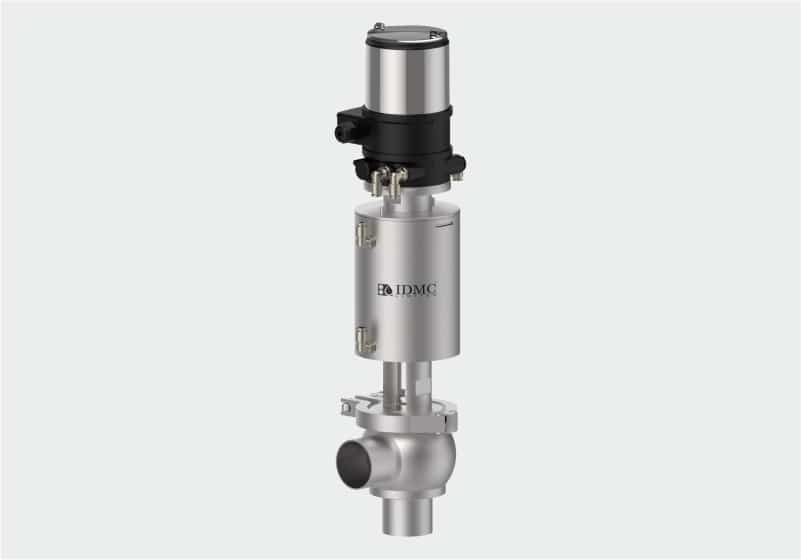

Flow modulating valves

Flow modulating valves are required to maintain the constant flow. IDMC manufactures high precision FMVs which maintain a uniform flow of any product through the piping.

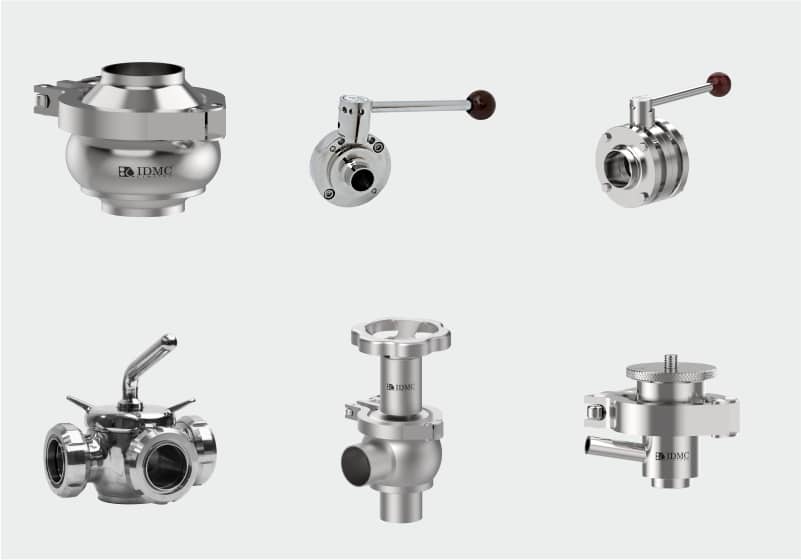

Manual valves & fittings

The key components in IDMC’s high performance sanitary valve solutions include manual butterfly valves, non-return valves, flow regulating valves in different sizes, both, in SS 304/ SS 316 L construction.

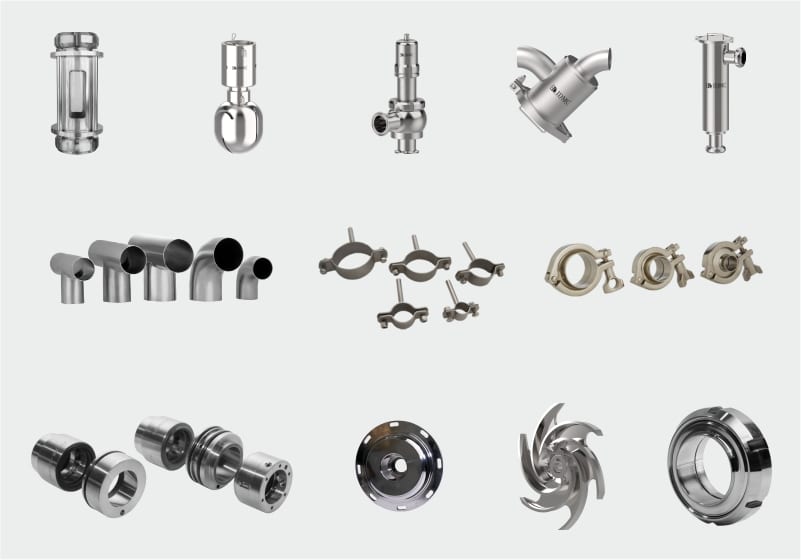

Tubes & fittings

IDMC offers a wide variety of fittings comprising tubes, bends, equal and unequal tees, inline sight glasses, SMS unions, tri-clover clamps with ferrule, pipe holders, reducers, inline strainers, rotary spray balls, stationary spray balls, bunging devices, angular valves, sampling cocks and tank bottom fittings, among others.
